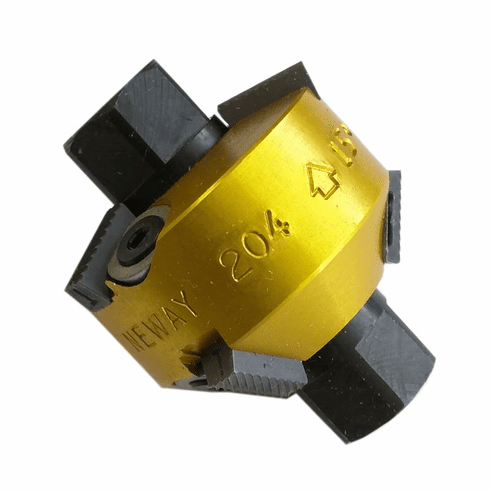

Neway Valve Seat Cutter  1-1/4" - 15° x 46°

Neway Valve Seat Cutter 1-1/4" - 15° x 46°

Item# CU204
$120.25
Availability: Usually ships same business day
Part Number CU204
Name Standard Series Valve Seat Cutter 31.8mm 15x46 deg.
Diameter 31.8mm

Side A

Angle 15°
Blade Count 3
Blade Part TC250
Operating Range Minimum 29mm
Operating Range Maximum 35mm
Blade Adjustment Minimum 14.5mm
Blade Adjustment Maximum 37.1mm

Side B

Angle 46°
Blade Count 3
Blade Part TC250
Operating Range Minimum 29mm
Operating Range Maximum 37mm
Blade Adjustment Minimum 18.3mm
Blade Adjustment Maximum 37.3mm
Valve Seat Cutting with Neway

Valve seat reconditioning is simple, accurate, and clean with Neway’s carbide-bladed cutters. Neway’s user-friendly valve seat cutters allow you to precisely machine a multi-angle valve seat in a matter of minutes. Tungsten carbide leaves a perfectly flat, machined surface, ideal for optimal sealing efficiency and heat transfer.

Standard Series Neway Cutter Bodies are designed to work with Neway .375" Top Size Valve Guide Pilots. These cutters are not compatible with the Small Series .297" Top Size Valve Guide Pilots. Neway Small Diameter Cutter Bodies can be found by clicking here. All Standard Series Cutter Bodies can be driven using the 1/2" T-Handle Wrench or the Easy-Turn Wrench.

Product Instructions:
Neway Cutter Instruction Manual (1.9 MB Requires Adobe Acrobat Reader)
