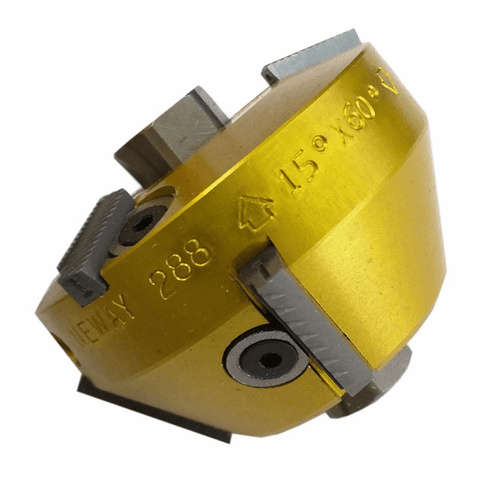

Neway Valve Seat Cutter  2.00" - 15° x 60°

Neway Valve Seat Cutter 2.00" - 15° x 60°

Item# CU288
$118.50
Availability: Usually ships the same business day
Part Number CU288
Name Standard Series Valve Seat Cutter 50.8mm 15x60 deg.
Diameter 50.8mm

Side A

Angle 15°
Blade Count 3
Blade Part TC251
Operating Range Minimum 47.5mm
Operating Range Maximum 56.5mm
Blade Adjustment Minimum 21.1mm
Blade Adjustment Maximum 58.4mm

Side B

Angle 60°
Blade Count 3
Blade Part TC254
Operating Range Minimum 47.5mm
Operating Range Maximum 61mm
Blade Adjustment Minimum 28.7mm
Blade Adjustment Maximum 61mm
Valve Seat Cutting with Neway

Valve seat reconditioning is simple, accurate, and clean with Neway’s carbide-bladed cutters. Neway’s user-friendly valve seat cutters allow you to precisely machine a multi-angle valve seat in a matter of minutes. Tungsten carbide leaves a perfectly flat, machined surface, ideal for optimal sealing efficiency and heat transfer.

Standard Series Neway Cutter Bodies are designed to work with Neway .375" Top Size Valve Guide Pilots. These cutters are not compatible with the Small Series .297" Top Size Valve Guide Pilots. Neway Small Diameter Cutter Bodies can be found by clicking here. All Standard Series Cutter Bodies can be driven using the 1/2" T-Handle Wrench or the Easy-Turn Wrench.

Product Instructions:
Neway Cutter Instruction Manual (1.9 MB Requires Adobe Acrobat Reader)
