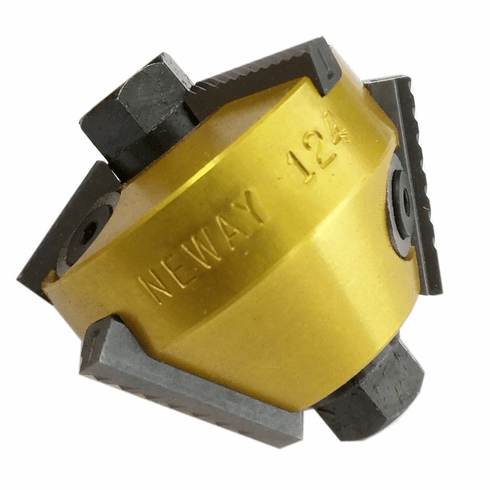

Neway Valve Seat Cutter  1-5/16" - 15° x 60°

Neway Valve Seat Cutter 1-5/16" - 15° x 60°

Item# CU124
$124.50
Availability: Usually ships same business day

CU124

Neway Valve Seat Cutter - 1.312" - 15° x 60°

Part Number CU124
Name Neway Valve Seat Cutter - 1.312" - 15° x 60°
Diameter 33.3mm / 1.312"
Angle 15° x 60°
Pilot Type Required 297" Top Size - 100 or 120 Series Pilots



Side A

Angle 15°
Blade Count 3
Blade Type TC251
Operating Range Minimum 32.5mm / 1.28"
Operating Range Maximum 39.5mm / 1.56"



Side B

Angle 60°
Blade Count 3
Blade Type TC254
Operating Range Minimum 32.5mm / 1.28"
Operating Range Maximum 44.5mm / 1.75"

Neway 100 Series Small Diameter Cutter Bodies are designed to work with Neway .297" Top Size Valve Guide Pilots. These cutters are not compatible with the standard .375" Top Size Valve Guide Pilots. Neway Standard Diameter Cutter Bodies can be found by clicking here

All Small Diameter Cutter Bodies can be driven using the 3/8" T-Handle Wrench or the Easy-Turn Wrench with the 1/2" to 3/8" Adaptor.

Valve Seat Cutting with Neway

Valve seat reconditioning is simple, accurate, and clean with Neway’s carbide-bladed cutters. Neway’s user-friendly valve seat cutters allow you to precisely machine a multi-angle valve seat in a matter of minutes. Tungsten carbide leaves a perfectly flat, machined surface, ideal for optimal sealing efficiency and heat transfer. We stock a large inventory of genuine Neway Valve Seat Cutters, Valve Guide Pilots and accessories. Custom valve seat cutting kits are available on request, please contact us with any questions.
