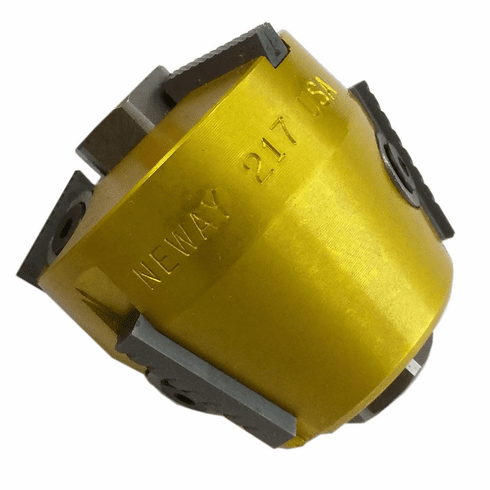

Neway Valve Seat Cutter  1-1/2" - 15° x 75° - 3 Blades

Neway Valve Seat Cutter 1-1/2" - 15° x 75° - 3 Blades

Item# CU217
$118.50
Availability: Usually ships same business day
Part Number CU217
Name Standard Series Valve Seat Cutter 38mm 15x75 deg.
Diameter 38mm

Side A

Angle 15°
Blade Count 3
Blade Part TC251
Operating Range Minimum 34.5mm
Operating Range Maximum 45mm
Blade Adjustment Minimum 9.7mm
Blade Adjustment Maximum 47mm

Side B

Angle 75°
Blade Count 3
Blade Part TC254
Operating Range Minimum 34.5mm
Operating Range Maximum 45mm
Blade Adjustment Minimum 28.6mm
Blade Adjustment Maximum 45.3mm



Valve Seat Cutting with Neway

Valve seat reconditioning is simple, accurate, and clean with Neway’s carbide-bladed cutters. Neway’s user-friendly valve seat cutters allow you to precisely machine a multi-angle valve seat in a matter of minutes. Tungsten carbide leaves a perfectly flat, machined surface, ideal for optimal sealing efficiency and heat transfer.

Standard Series Neway Cutter Bodies are designed to work with Neway .375" Top Size Valve Guide Pilots. These cutters are not compatible with the Small Series .297" Top Size Valve Guide Pilots. Neway Small Diameter Cutter Bodies can be found by clicking here. All Standard Series Cutter Bodies can be driven using the 1/2" T-Handle Wrench or the Easy-Turn Wrench.

Product Instructions:
Neway Cutter Instruction Manual (1.9 MB Requires Adobe Acrobat Reader)
