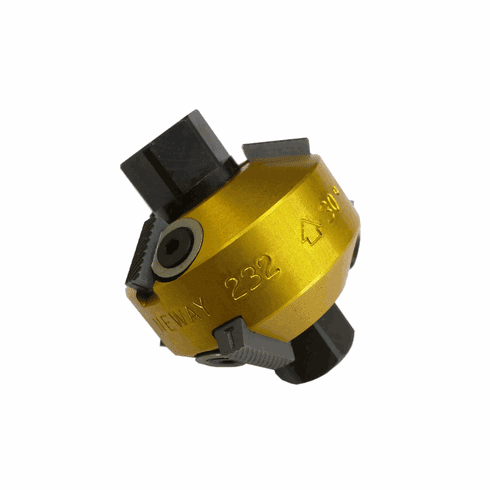

Neway Valve Seat Cutter  1-3/8" - 30° x 45° - 3 Blades

Neway Valve Seat Cutter 1-3/8" - 30° x 45° - 3 Blades

Item# CU232
$122.25
Availability: Usually ships same business day
Part Number CU232
Name Standard Series Valve Seat Cutter 35mm 30x45 deg.
Diameter 35mm

Side A

Angle 30°
Blade Count 3
Blade Part TC250
Operating Range Minimum 31mm
Operating Range Maximum 37.5mm
Blade Adjustment Minimum 16.5mm
Blade Adjustment Maximum 39.6mm

Side B

Angle 45°
Blade Count 3
Blade Part TC251
Operating Range Minimum 32.5mm
Operating Range Maximum 44mm
Blade Adjustment Minimum 18.4mm
Blade Adjustment Maximum 43.7mm

Blades extend beyond cutter body, even when adjusted to innermost position.



Valve Seat Cutting with Neway

Valve seat reconditioning is simple, accurate, and clean with Neway’s carbide-bladed cutters. Neway’s user-friendly valve seat cutters allow you to precisely machine a multi-angle valve seat in a matter of minutes. Tungsten carbide leaves a perfectly flat, machined surface, ideal for optimal sealing efficiency and heat transfer.

Standard Series Neway Cutter Bodies are designed to work with Neway .375" Top Size Valve Guide Pilots. These cutters are not compatible with the Small Series .297" Top Size Valve Guide Pilots. Neway Small Diameter Cutter Bodies can be found by clicking here. All Standard Series Cutter Bodies can be driven using the 1/2" T-Handle Wrench or the Easy-Turn Wrench.

Product Instructions:
Neway Cutter Instruction Manual (1.9 MB Requires Adobe Acrobat Reader)
