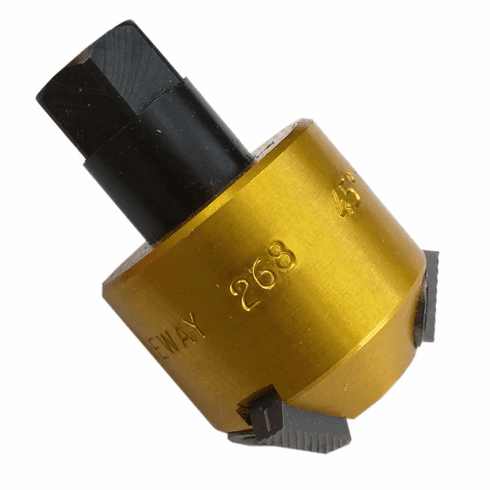

Neway Valve Seat Cutter 1-1/8" - 45°

Neway Valve Seat Cutter 1-1/8" - 45°

Item# CU268
$72.75
Availability: Usually ships the same business day

CU268

Neway Valve Seat Cutter 1-1/8" - 45°

Part Number CU268
Name Neway Valve Seat Cutter 1-1/8" - 45°
Diameter 28.6mm / 1.125"
Angle 45°
Blade Count 3
Blade Type TC250
Pilot Type Required .375" Top Size - 140, 150 or 200 Series Pilots
Operating Range Minimum 25.5mm / 1.00"
Operating Range Maximum 33.5mm / 1.32"



Valve Seat Cutting with Neway

Valve seat reconditioning is simple, accurate, and clean with Neway’s carbide-bladed cutters. Neway’s user-friendly valve seat cutters allow you to precisely machine a multi-angle valve seat in a matter of minutes. Tungsten carbide leaves a perfectly flat, machined surface, ideal for optimal sealing efficiency and heat transfer.

Standard Series Neway Cutter Bodies are designed to work with Neway .375" Top Size Valve Guide Pilots. These cutters are not compatible with the Small Series .297" Top Size Valve Guide Pilots. Neway Small Diameter Cutter Bodies can be found by clicking here. All Standard Series Cutter Bodies can be driven using the 1/2" T-Handle Wrench or the Easy-Turn Wrench.

Product Instructions:
Neway Cutter Instruction Manual (1.9 MB Requires Adobe Acrobat Reader)
